FOMITO V-Mount V-Lock Quick Release Battery Plate Power Adapter with 15mm Rod Clamp Built-in Type-C Fast Charging Input

V-mount Power Supply System Updated Version WY-VG9

Input:

• Battery: 12.8-16.8V (follow battery voltage)

• Type-C: PD3.0 5V / 9V / 12V / 15V / 20V (max. 60W); FC 5~12V / 24W. Support smart charger and detect the protocol of the adapter BC1.2/apple divider / type-C / FC, etc.

Output:

• USB: 5~12V/24W (compatible with apple / BC1.2/SANSUNG Galaxy / FC)

• Type-C: PD3.0 5V / 9V / 12V / 15V / 20V (max. 60W); FC 5~12V/24W. Support smart charger and detect the protocol of the adapter BC1.2/apple divider / type-C / FC, etc

• DC5V: 5V/3A (DC5.5 * 2.1mm / inner positive and outer negative)

• DC8V: 8V/3A (DC5.5 * 2.1mm / inner positive and outer negative)

• DC12V: 12V/3A (DC5.5 * 2.5mm / inner positive and outer negative)

• DC15V: 15V/5A (DC5.5 * 2.5mm / internal positive and external negative, voltage and current change with the battery)

• D-tap Output: 14.8V (output, controlled by the main switch, voltage and current follow the battery)

• Total Power: 180W

• Applicable Battery: V-mouth battery

• Conduit Clamp Diameter: 15mm

• Net Weight: 1.43lbs/650g

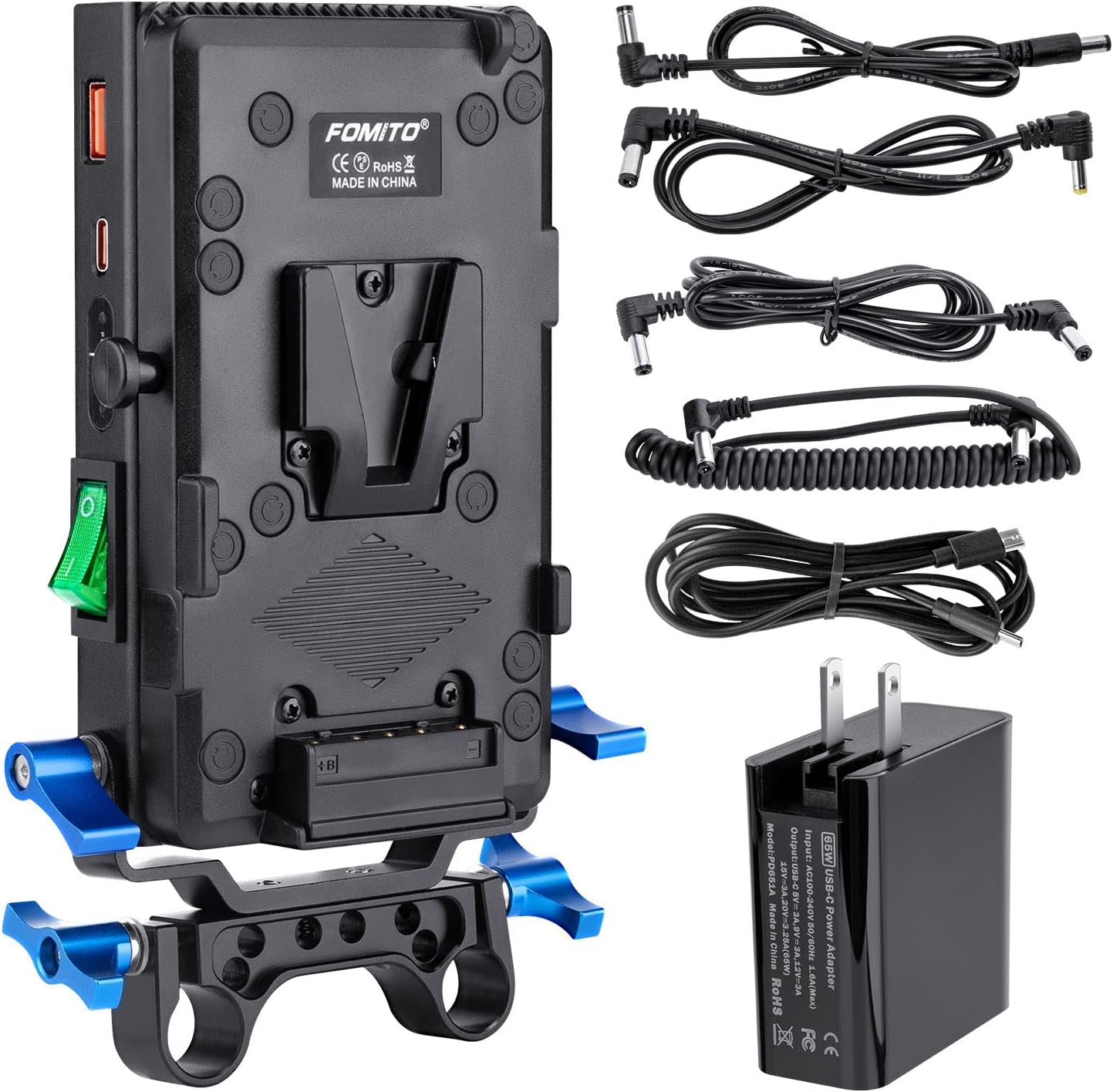

Pack List:

• 1 xType-c to Type-C Straight Cable

• 1 x 5.5 * 2.5mm DC to DC Spring Cable

• 1 x DC5.5 2.5mm Right Angle to DC4.0 1.7mm Right Angle Cable

• 1 x DC5.5 2.5mm Right Angle to DC5.5 2.5mm Right Angle Cable

• 1 x DC5.5 2.5mm Right Angle to DC5.5 2.5mm Straight Cable
